Flush Bottom Valves ("Y" Type)

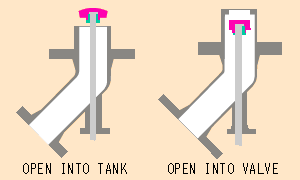

Flosteer Valves have been proven in service application for over 35 years. Flosteer Flush bottom valves (Tank valves) are designed to provide drainage and dead space free shutoff for reactors, vessels and storage tanks. The dead space free shutoff is accomplished by placing the valve seat flush with the bottom of the vessel. This eliminates any buildup of product within the vessel nozzle itself.

Features:

• Stronger Heavy Duty Construction

• Flexible design capabilities allow fitting any vessel nozzle configuration

• Deep stuffing box is providing to assure tightness and maximum packing life

• Precision Stem Packing Chamber

• Self Aligning Two Piece Gland

• Ground Finish Stem

• Manual, Pneumatic Cylinder (Spring Return or Double Acting / With Or Without Manual Hand-Wheel), Electrical Actuator, Hydraulic operations

• Steam or Cooling Jacketed Valve

• P.T.F.E. (PFA/FEP) Lined Valve
